Product Profile

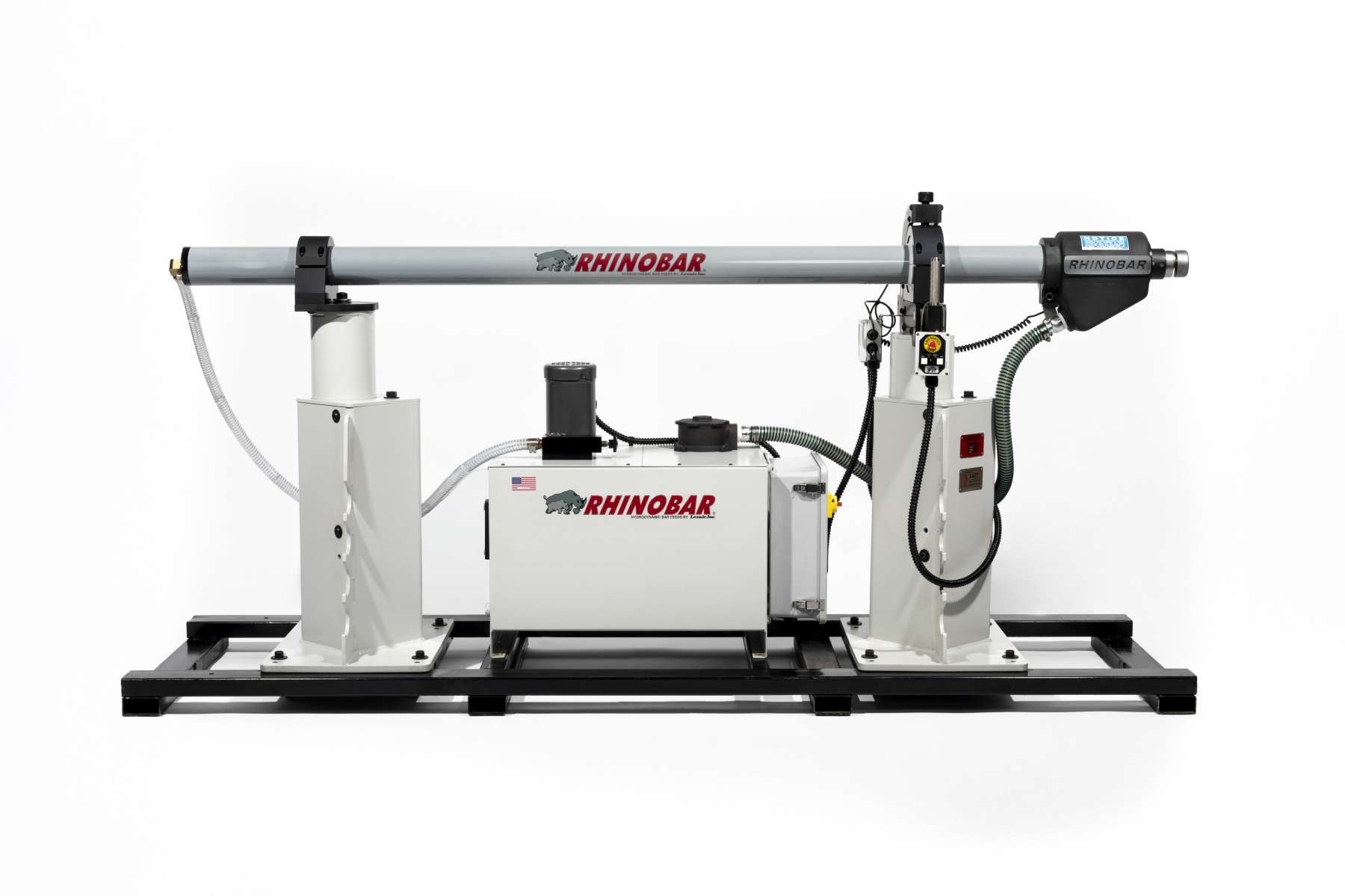

Designed for all traditional CNC machines and with diameters ranging from 0.25 inches to 2.5 inches, the Rhinobar® is your most versatile bar feeder for dedicated production. This system operates on the hydrodynamic principle, keeping the bar stock stabilized ensuring vibration-free performance at max operating speeds on your CNC machine. Lastly, the Rhinobar® facilitates quick and easy feed tube changeout that will ultimately increase your production time and reduce cost.
Specifications
| Max Bar Diameter |
2.5" |
| Lathe Type |
Fixed Headstock |
| Bundle Loader Compatible |
No |
| Remnant Retraction |
No |
| Barfeed Design |
Single |
| Rhinobar® Model Number |
RB-2.5-6 |
| Min Bar diameter |
1/4" |
| Max Bar length |
|
| Motor |
1 HP / 1725 RPM |
| Electrics |
208/220/440 V, 3 phase |
| Oil Requirements |
35 gallons of Pennzoil AW-100 hydraulic oil or equivalent |
| Overall Length |
|
