Model : MRB 1.62
Max Dia. 1.62"
Bar lengths 6ft/12ft
Reliably feed 0.06" Material

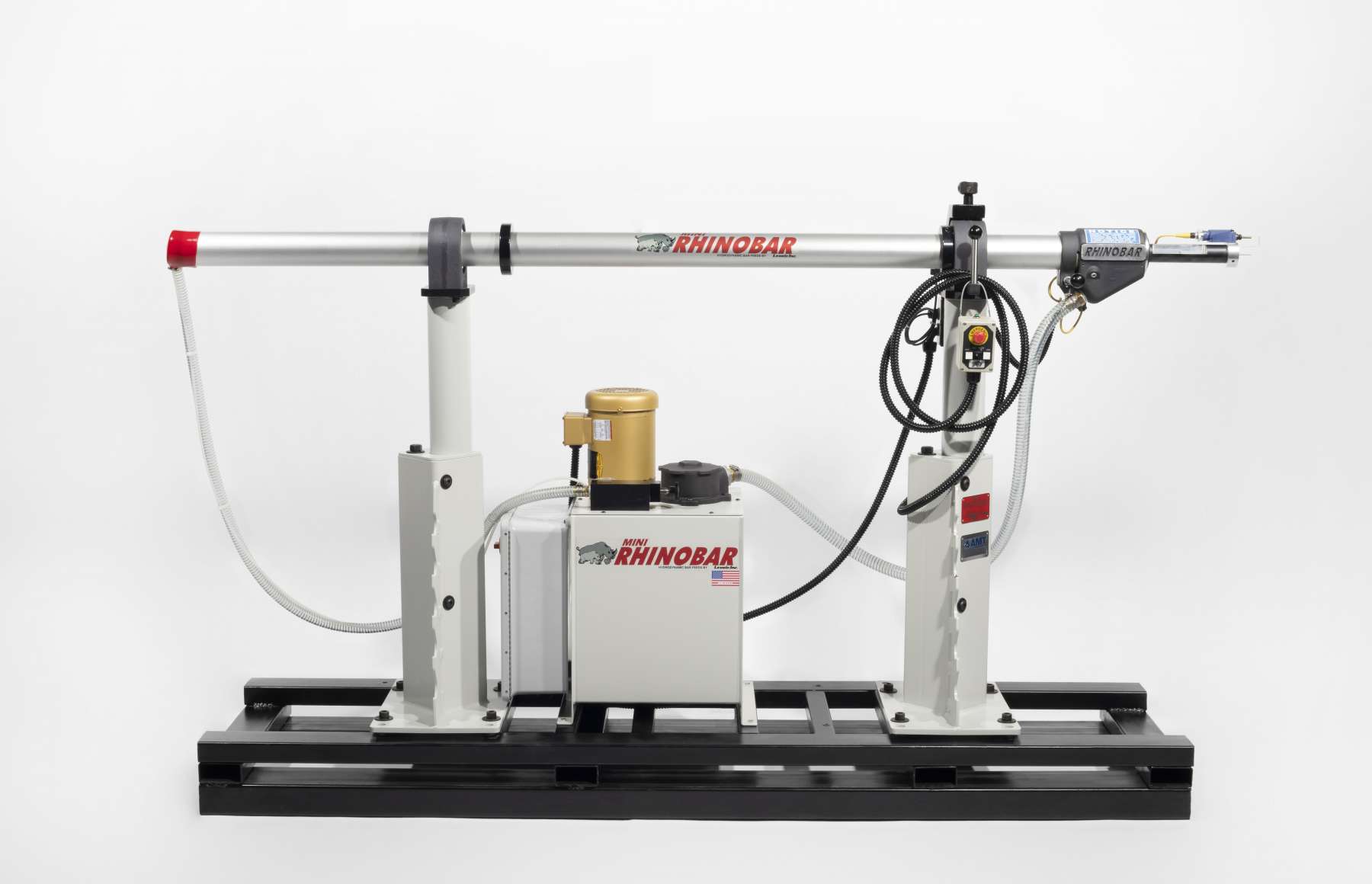

The Mini Rhinobar® is a precision-engineered single tube bar feeder designed for small diameter applications such as Swiss-style CNC machines and fixed head CNC lathes. This system operates on the hydrodynamic effect, ensuring vibration-free performance at max operating speeds on your CNC machine. The Mini Rhinobar® features z-axis retraction while maintaining centerline, minimizing the distance between the bar feed and spindle enhancing support and overall production.
The Mini Rhinobar® is a clean, safe, and low-cost alternative to its competitors with its unique framework.
| Bundle Loader Compatible | No |
| Remnant Retraction | No |
| Barfeed Design | Single |
| Max Bar Diameter | 1.625" |
| Rhinobar® Model Number | MRB 1.62 |
| Min Bar diameter | 0.062" |
| Max Bar Length |
|
| Motor | 1 HP / 1725 RPM |
| Electrics | 208/220/440 V, 3 phase |
| Oil Requirements | 15 gallons of Pennzoil AW-100 hydraulic oil or equivalent |
| Overall Length |
|
