Product Profile

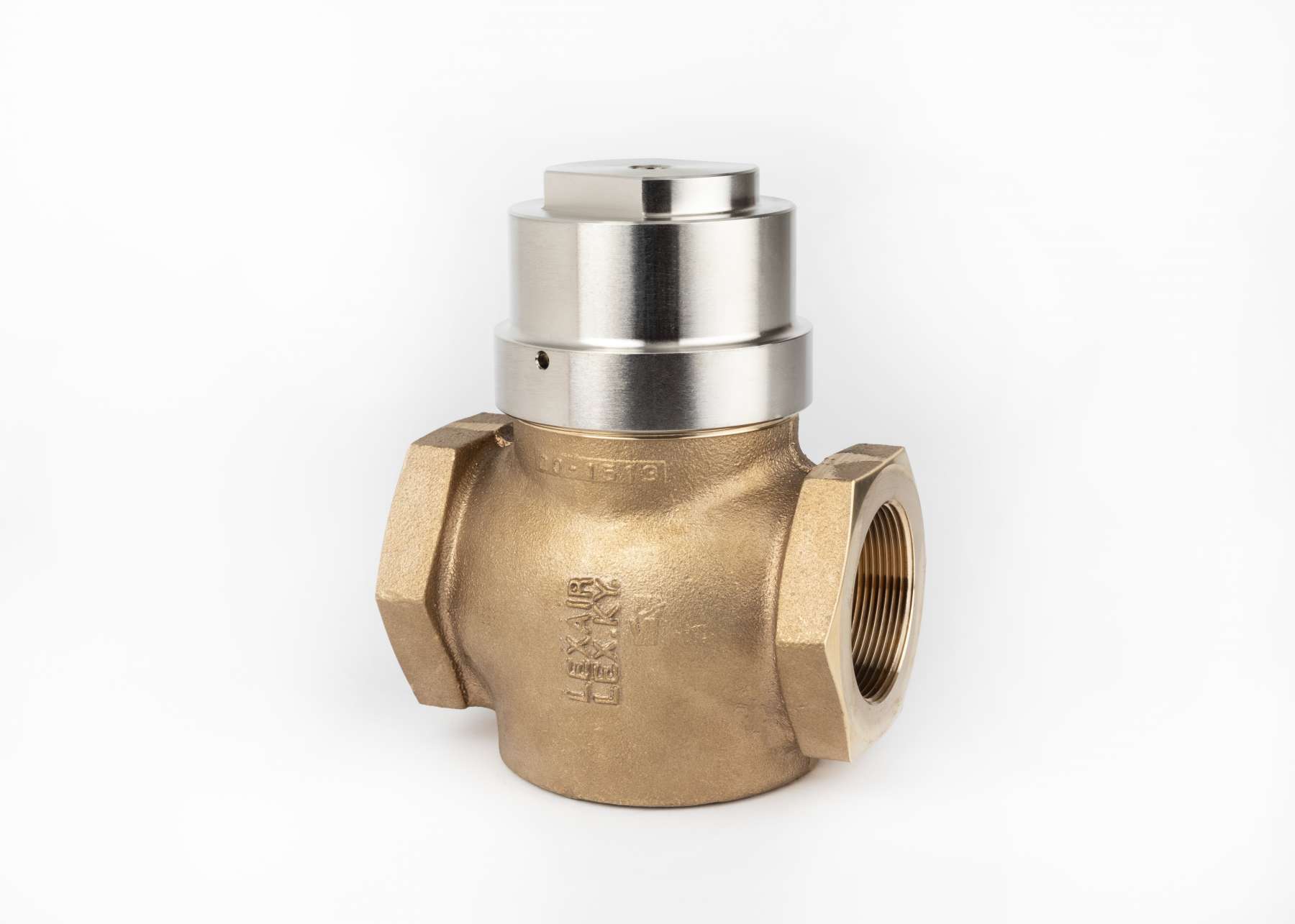

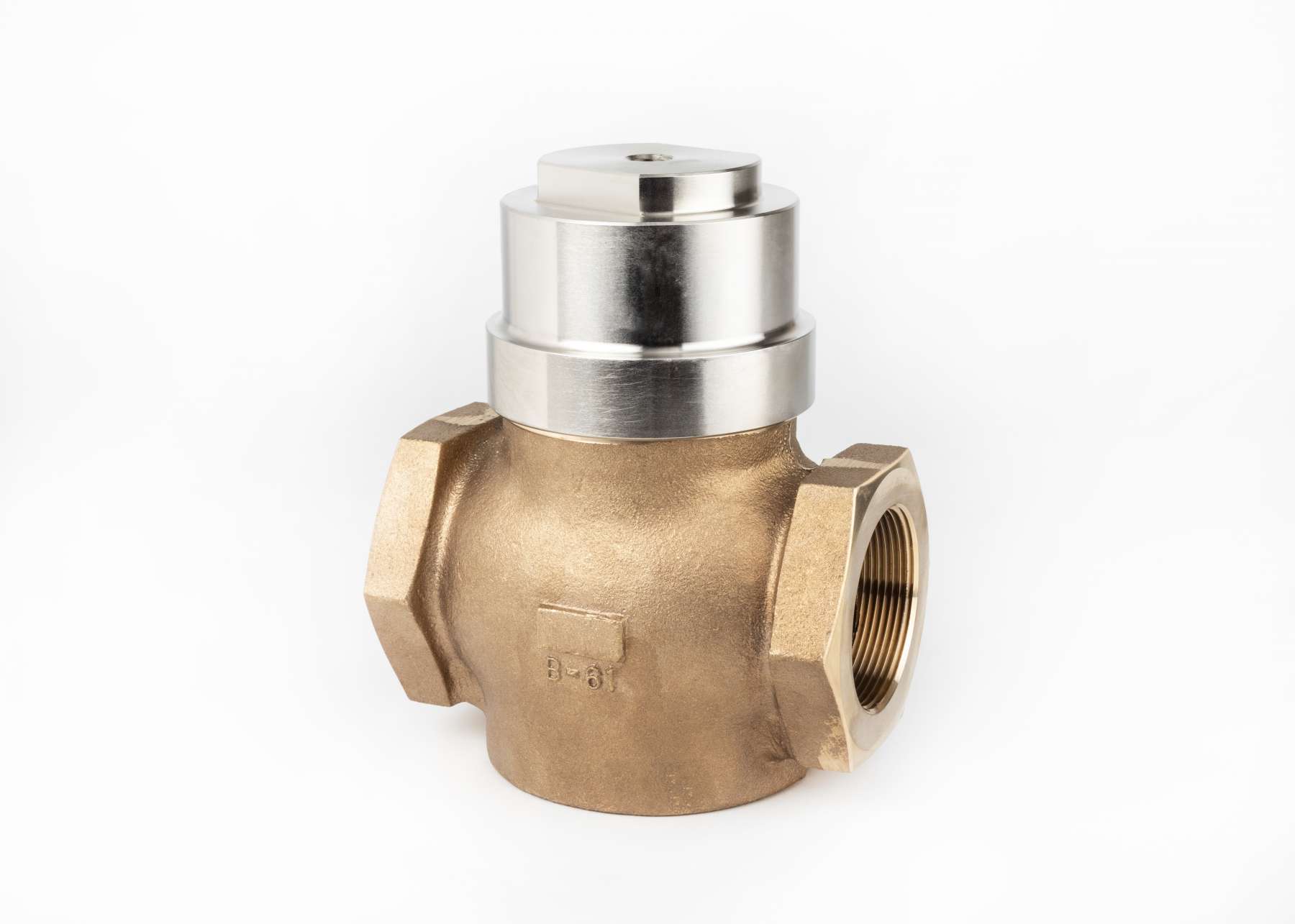

Our 2" 2-way normally open direct pilot poppet valve provides bubble-tight closure, even under low-pressure conditions. Construction from non-corrosive materials allows compatibility with a wide variety of liquids and gases, ensuring long service life. With a standard operating pressure of 500 PSI, these durable, high-flow units are perfect for any of your high-pressure application requirements.
- For pressures higher than 500 PSI, please consult the factory
- Quick positive control
- Many standard seal options
- Easy in-line repair - saves on machine downtime
- For air, liquid, gas, or vacuum service
- Configurable to your exact application need
- Brass Pilot Cap and Brass Pilot Piston are standard on the 2"
Specifications
| Pilot Ratio |
1:1 |
| Type |
2 Way Normally Open |
| Port Size |
2" NPT |
| Cv Factor |
50.00 |
| Actuator |
Direct Pilot Operated |
| Valve Design |
Poppet |
| Bubble Tight |
Yes |
|
Model Number
|
324632 |
| Body |
Cast Bronze (ASTM B-61) |
|
Pilot Cap
|
Nickel Plated Brass |
| Internal Parts |
Brass and Stainless Steel |
| Standard Seals |
Buna-N
|
| Optional Seals |
- Molybdenum Disulfide Coated Buna-N
- Viton®
- Chemical / High Temp Service (Teflon / PTFE + Viton® / FKM)
- Ethylene Propylene (EPR)
- Steam Service (Teflon / PTFE + Ethylene Propylene / EPR + Viton® / FKM)
|
| Weight (lbs) |
16.0 |
| Pilot Port Size |
1/4" NPT |
|
Temperature Range
|
-30° F to +250° F with standard Seals
(Optional Seal Temperature Range -70° F to +400° F)
|
| Pressure Range |
0-500 PSI
*Higher pressure ratings available, consult factory.
|
