Product Profile

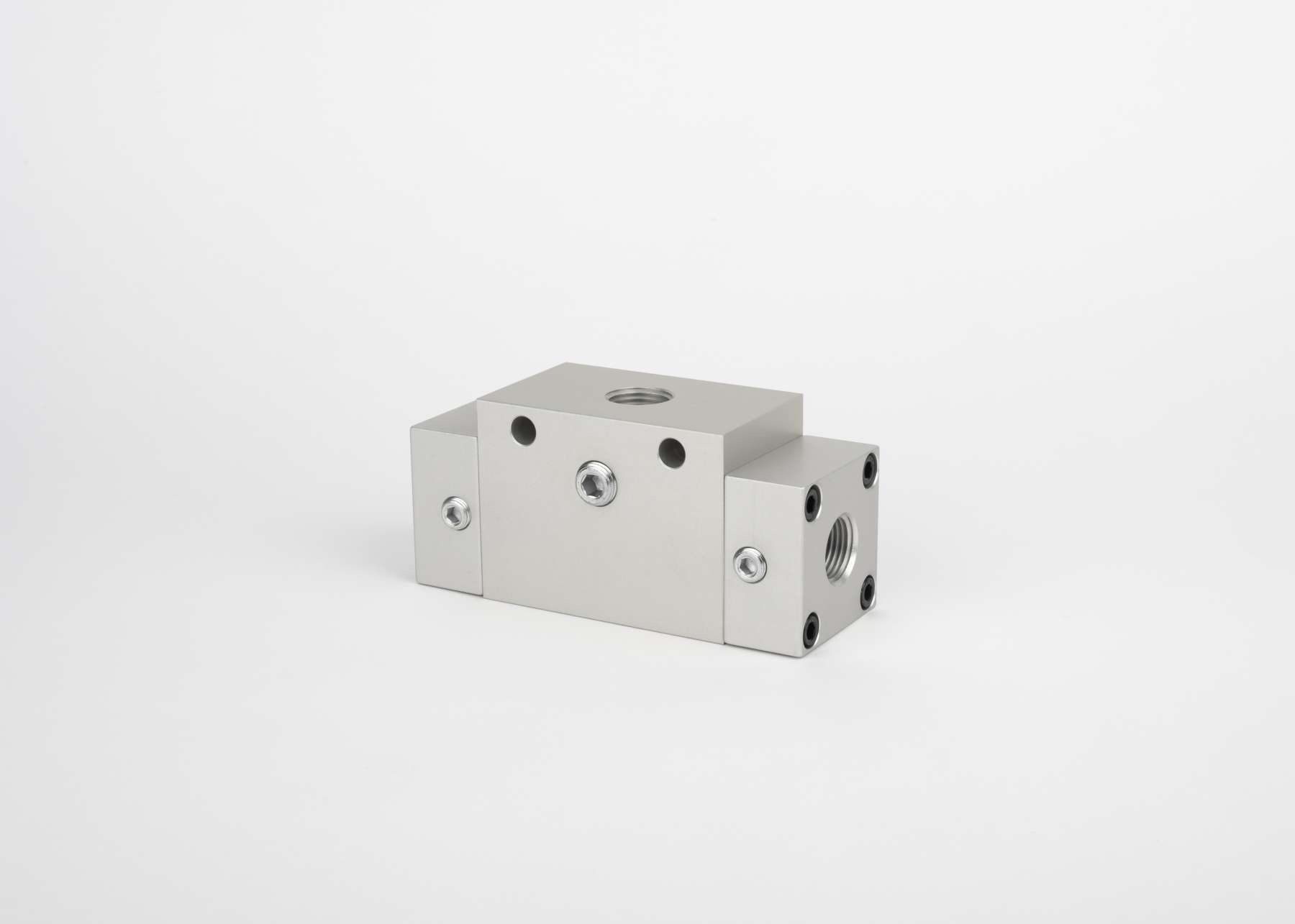

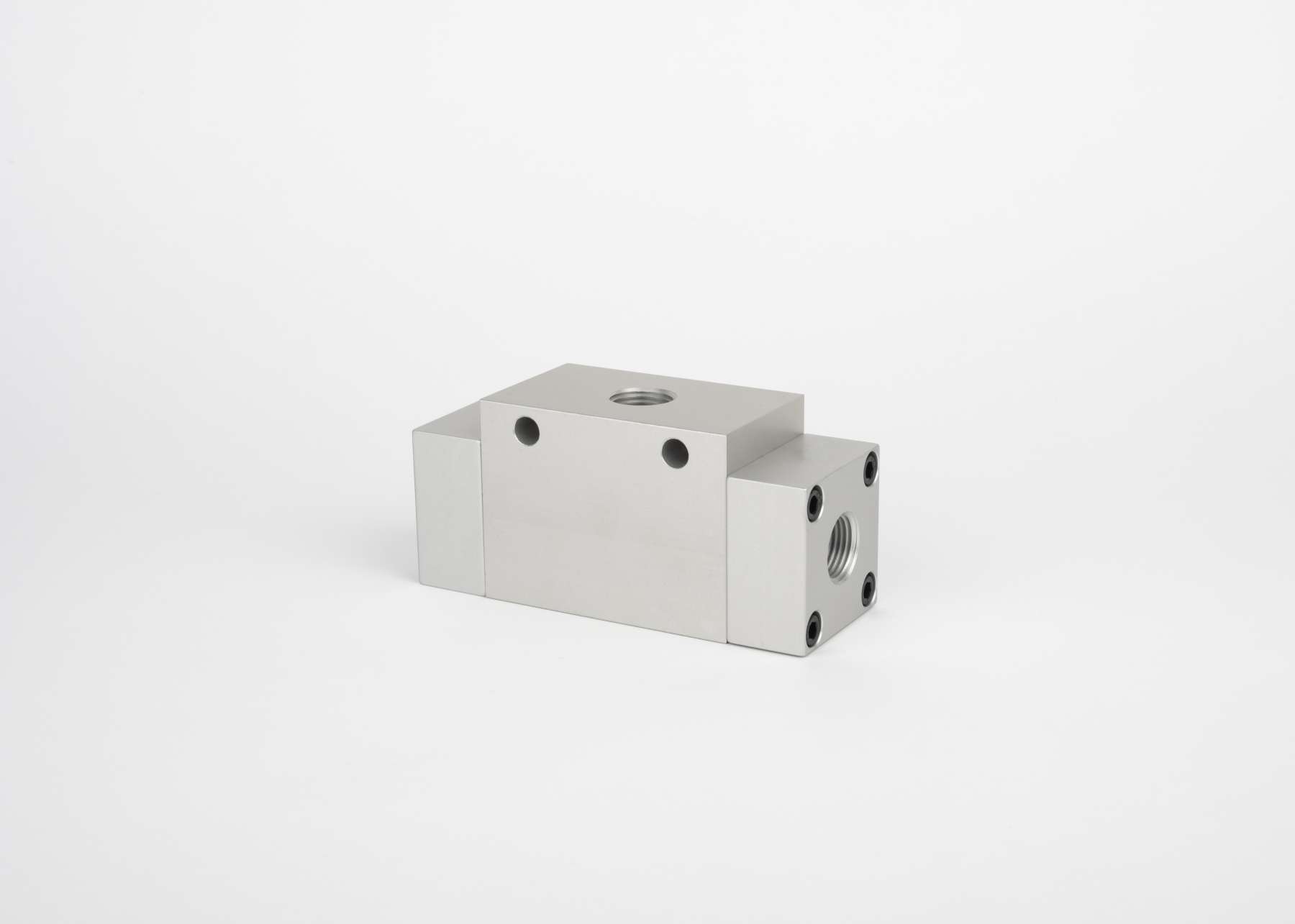

Our 1/2" shuttle valve is constructed with a durable anodized aluminum body using a solid Delrin® piston and Buna seats providing bubble-tight sealing, even in low-pressure applications. These quick-acting, high-flow shuttle valves reliably direct flow from either of two sources to a single output and feature auxiliary ports on both end caps and the body. These models also feature a simple "drop-out" body design that allows for quick and easy service without the need to disconnect piping.
- Easy in-line repair - saves on machine downtime
- Mounting orientation does not affect valve operation
- Quick positive control
- Standard pressure rating of 250 PSI
- Bubble tight at 2 PSI
- For Air, Inert Gases, Oil, or Water service
- Direct replacement for 4241-801
Specifications
| Port Size |
1/2" NPT |
| Cv Factor |
6.98 |
| Seal Material |
Buna-N |
| Type |
OR |
| Actuator |
Pressure Operated |
| Valve Design |
Shuttle |
| Bubble Tight |
Yes |
|
Model Number
|
4241-901 |
| Body |
Anodized Aluminum |
|
End Cap
|
Anodized Aluminum |
| Piston |
Delrin® |
| Body Sensing Port |
1/4" NPT |
| End Cap Sensing Port |
1/8"NPT |
| Weight (lbs) |
2.0 |
|
Temperature Range
|
-30° F to +180° F |
| Pressure Range |
0-250 PSI
*Higher pressure ratings available, consult factory.
|
