Product Profile

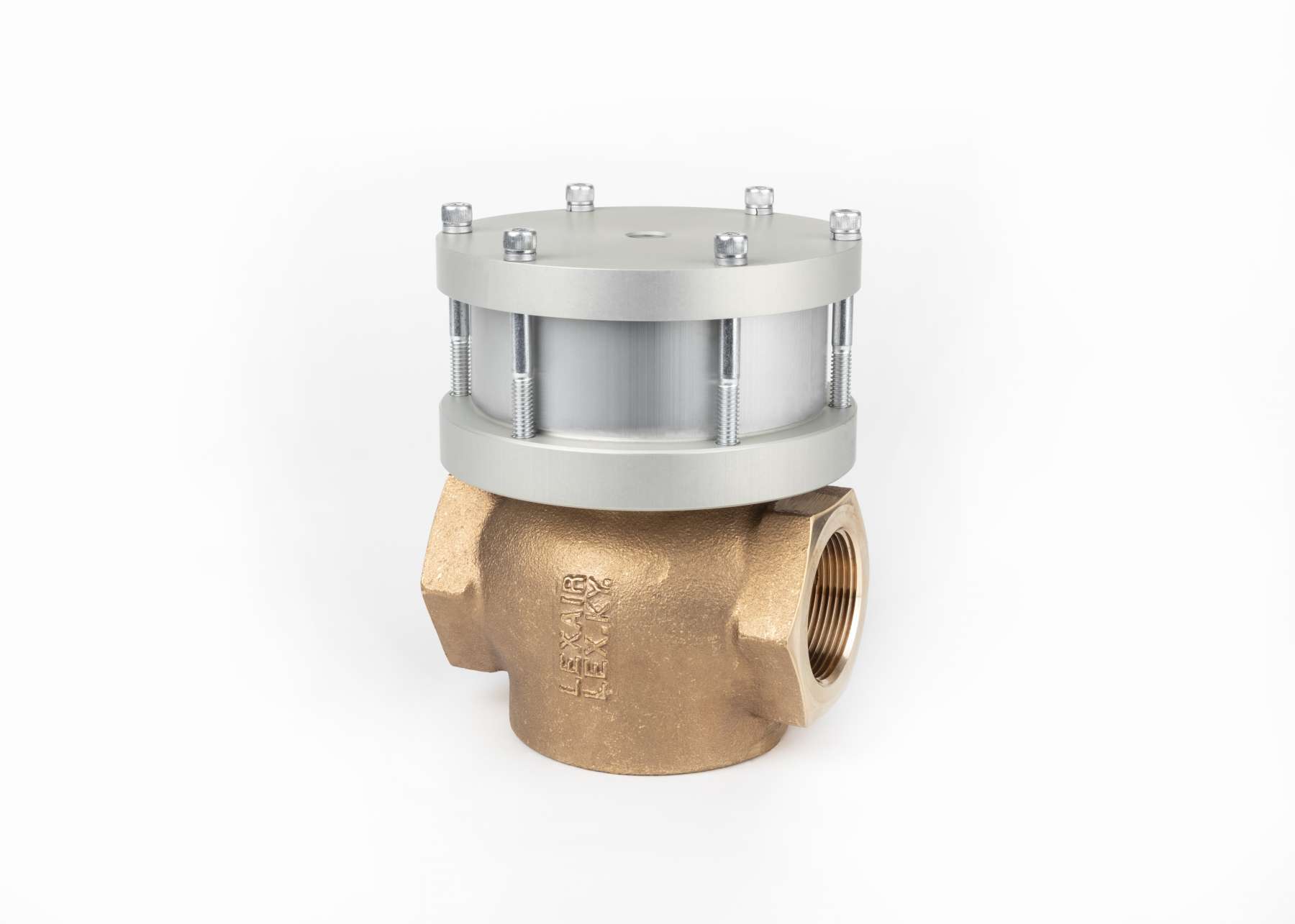

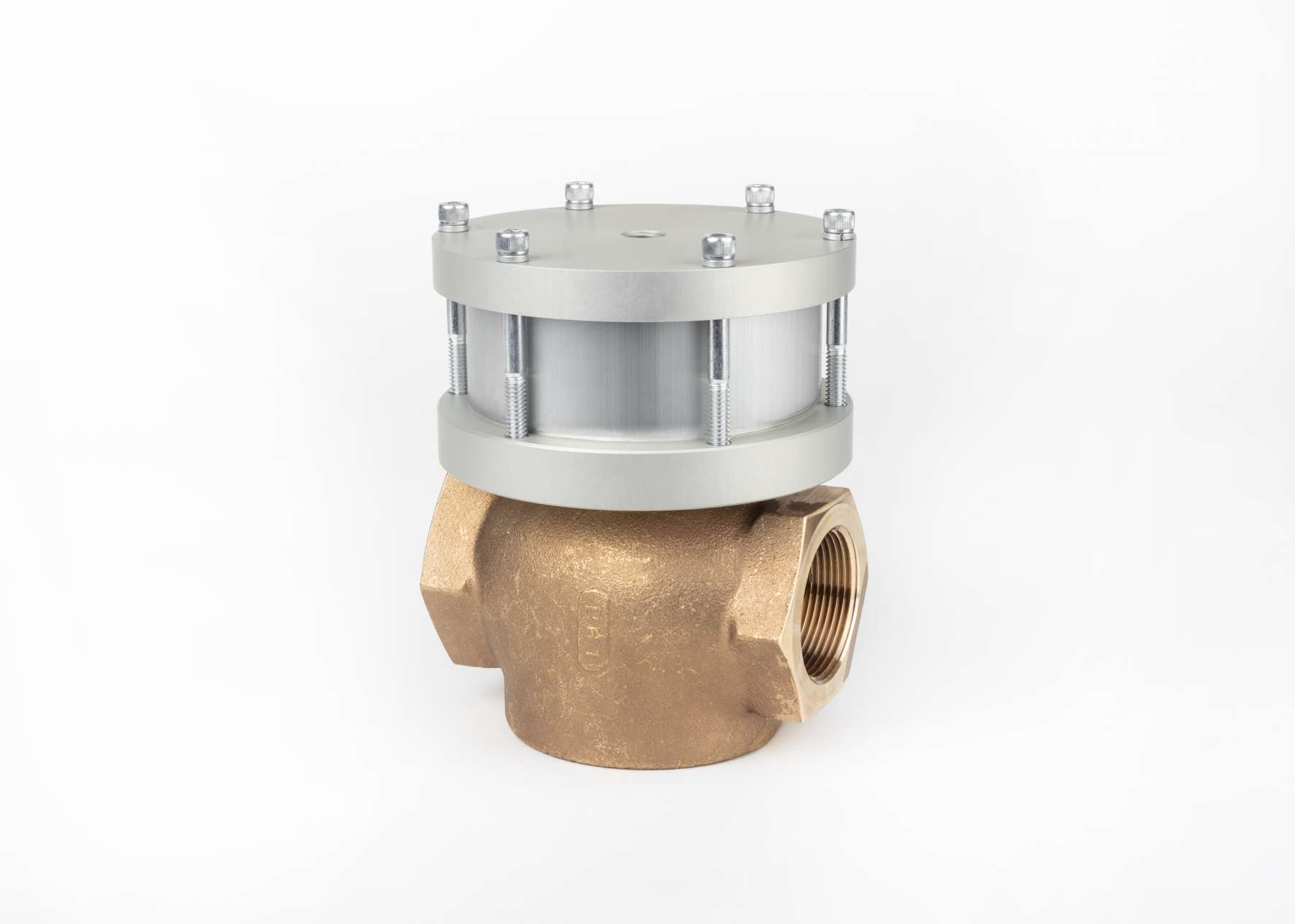

Our 1 1/2" 2-way normally open direct pilot poppet valve provides bubble-tight closure, even under low-pressure conditions. Construction from non-corrosive materials allows compatibility with a wide variety of liquids and gases, ensuring long service life. With a standard operating pressure of 500 PSI, these durable, high-flow units are perfect for any of your high-pressure application requirements.
- For pressures higher than 500 PSI, please consult the factory
- Quick positive control
- Many standard seal options
- Brass Pilot Cap option not available
- Easy in-line repair - saves on machine downtime
- For air, liquid, gas, or vacuum service
- Configurable to your exact application need
Specifications
Port Size |
1 1/2" NPT |
Type |
2 Way Normally Open |
Cv Factor |
25.80 |
Pilot Ratio |
4:1 |
Actuator |
Direct Pilot Operated |
Valve Design |
Poppet |
Bubble Tight |
Yes |
Model Number
|
325124 |
Body |
Cast Bronze (ASTM B-61) |
Pilot Cap
|
Anodized Aluminum |
Internal Parts |
Brass and Stainless Steel |
Standard Seals |
Buna-N
|
Optional Seals |
- Molybdenum Disulfide Coated Buna-N
- Viton®
- Chemical / High Temp Service (Teflon / PTFE + Viton® / FKM)
- Ethylene Propylene (EPR)
- Steam Service (Teflon / PTFE + Ethylene Propylene / EPR + Viton® / FKM)
|
Weight (lbs) |
8.4 |
Pilot Port Size |
1/4" NPT |
Temperature Range
|
-30° F to +250° F with standard Seals
(Optional Seal Temperature Range -70° F to +400° F)
|
Pressure Range |
0-500 PSI
*Higher pressure ratings available, consult factory.
|
