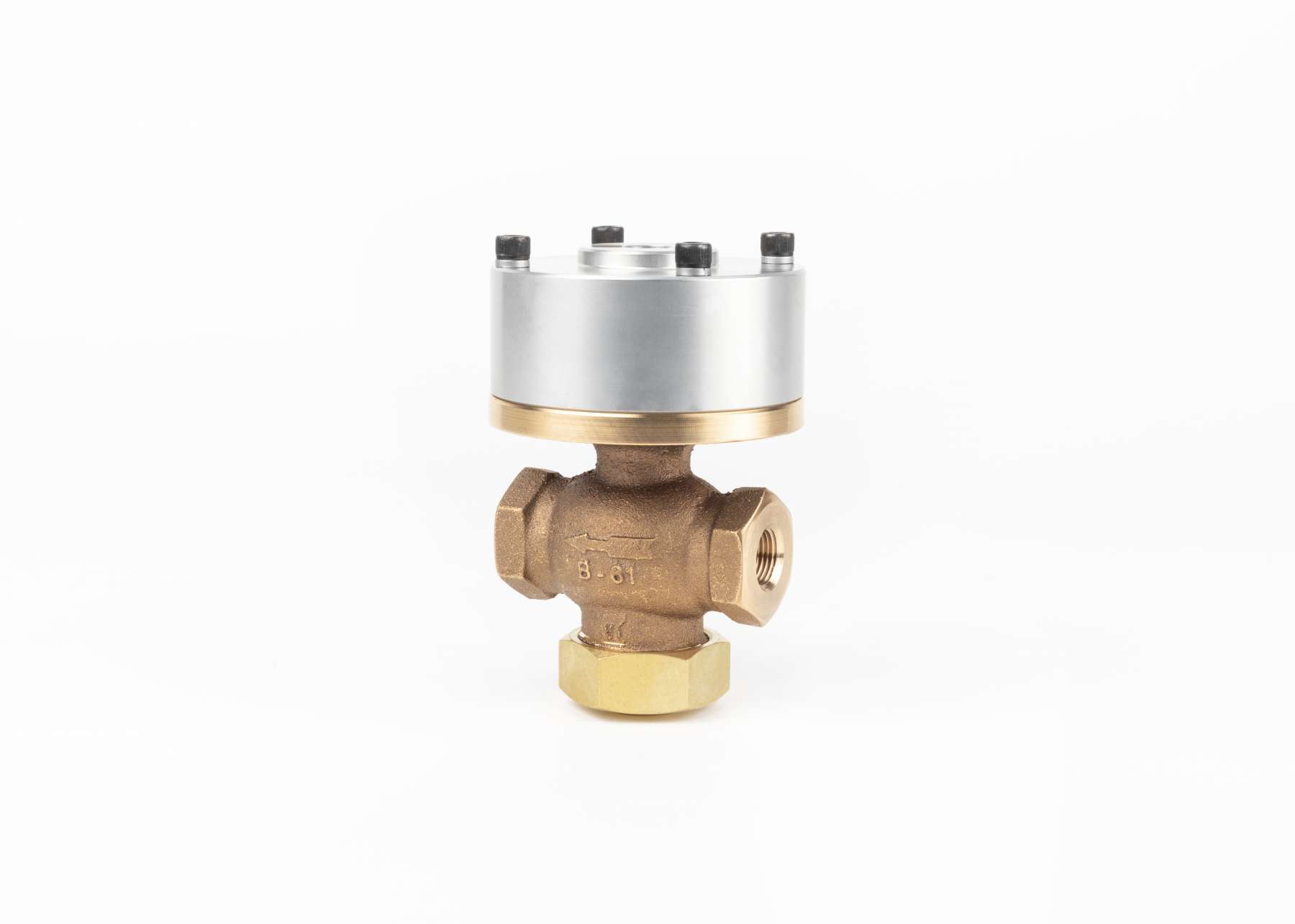

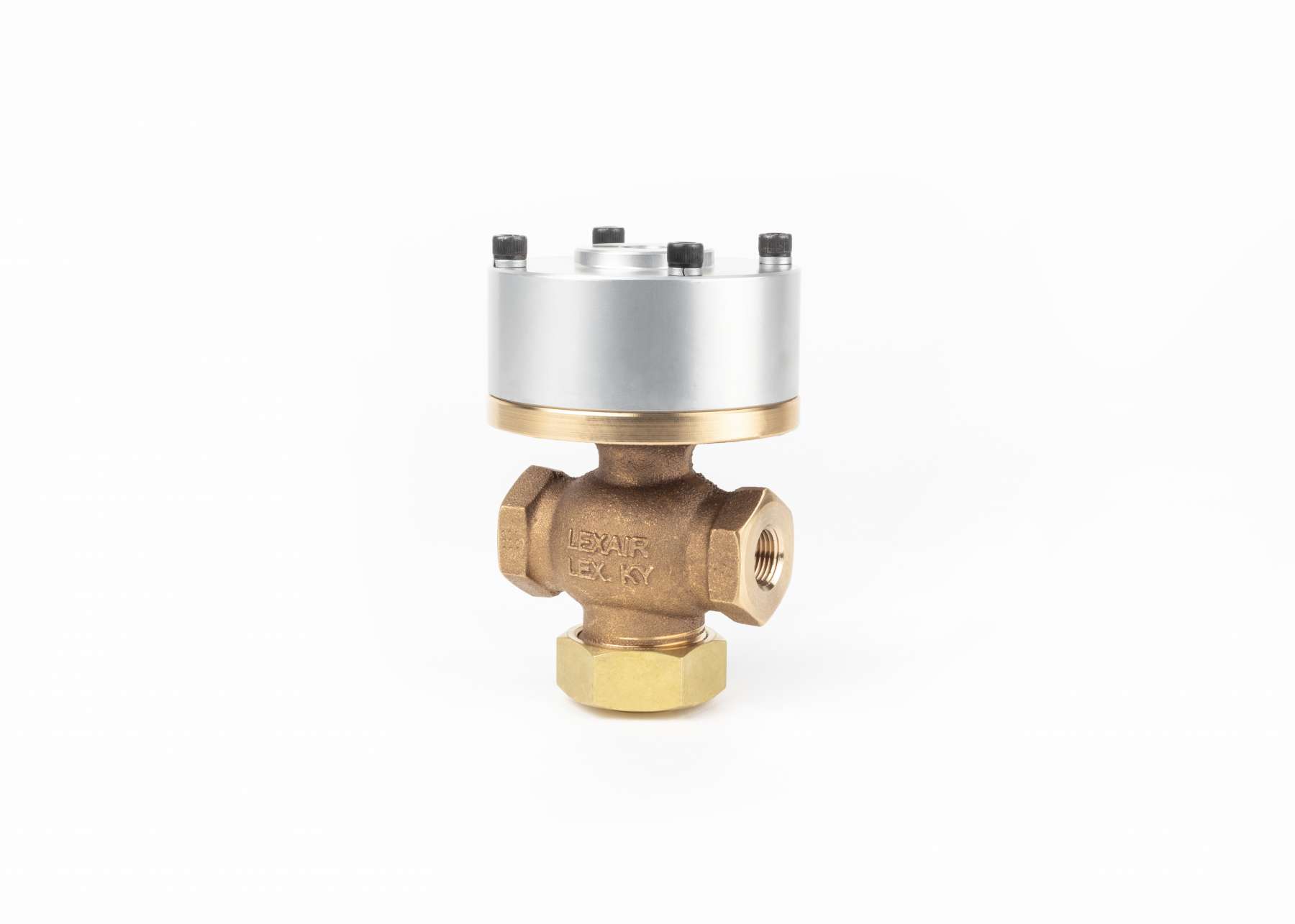

Our 3/8" 2-way normally closed high ratio direct pilot poppet valve allows higher media pressures to be controlled by lower pilot pressures, allowing the use of a standard compressed air system for piloting. This valve provides bubble-tight closure, even under low-pressure conditions. Constructed from non-corrosive materials allowing compatibility with a wide variety of liquids and gases, ensuring long service life. With a standard operating pressure of 500 PSI, these durable, high-flow units are perfect for any of your high-pressure application requirements.
For pressures higher than 500 PSI, please consult the factory
Pilot ratios up to 10:1
Quick positive control
Many standard seal options
Easy in-line repair - saves on machine downtime
For air, liquid, gas, or vacuum service
Configurable to your exact application need
2 Way Normally Closed
Direct Pilot Operated
Cast Bronze (ASTM B-61)
Brass and Stainless Steel
*Poppet Seal is Viton® for better wear characteristics and longer life.
Molybdenum Disulfide Coated Buna-N
Chemical / High Temp Service (Teflon / PTFE + Viton® / FKM)
