Product Profile

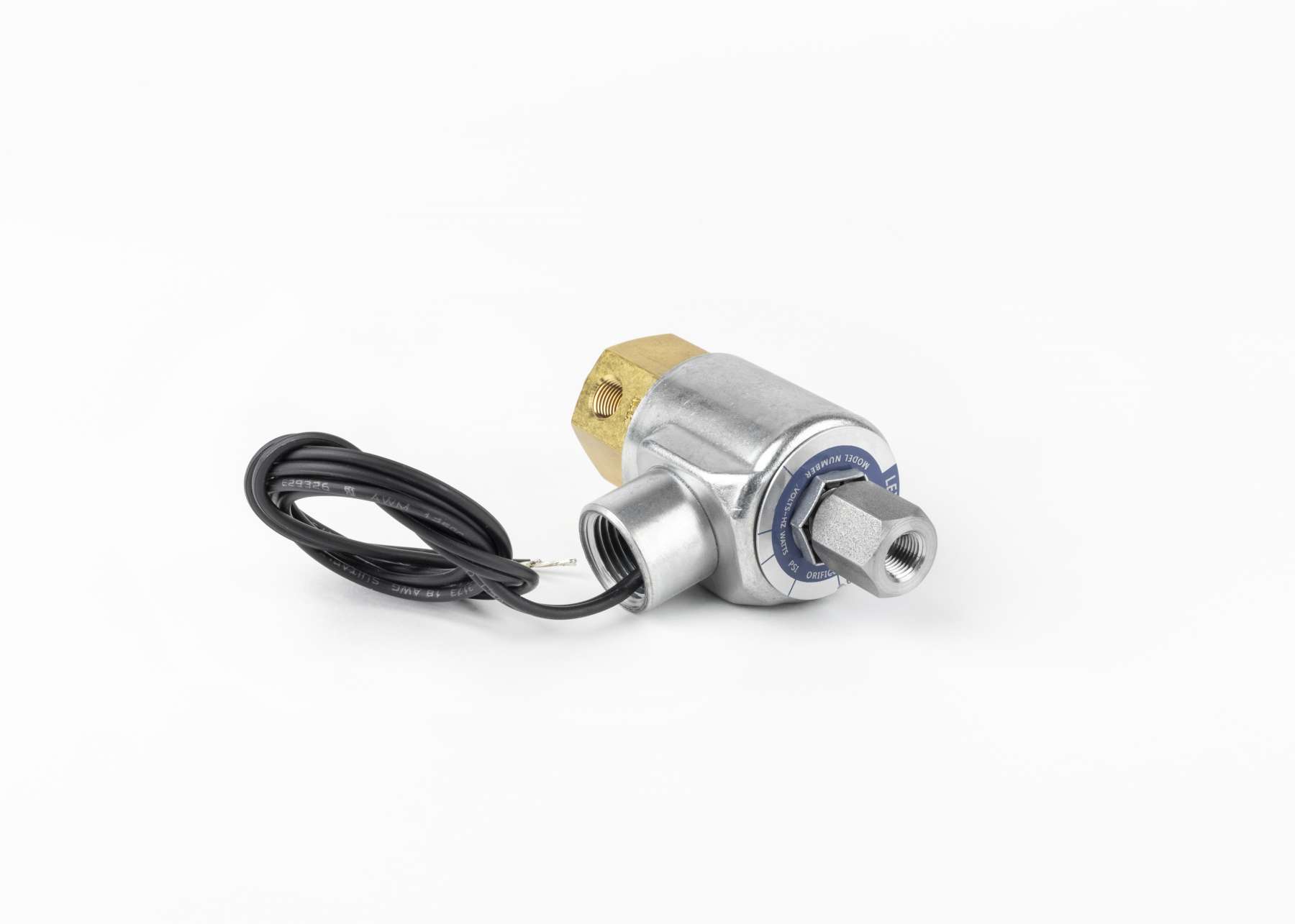

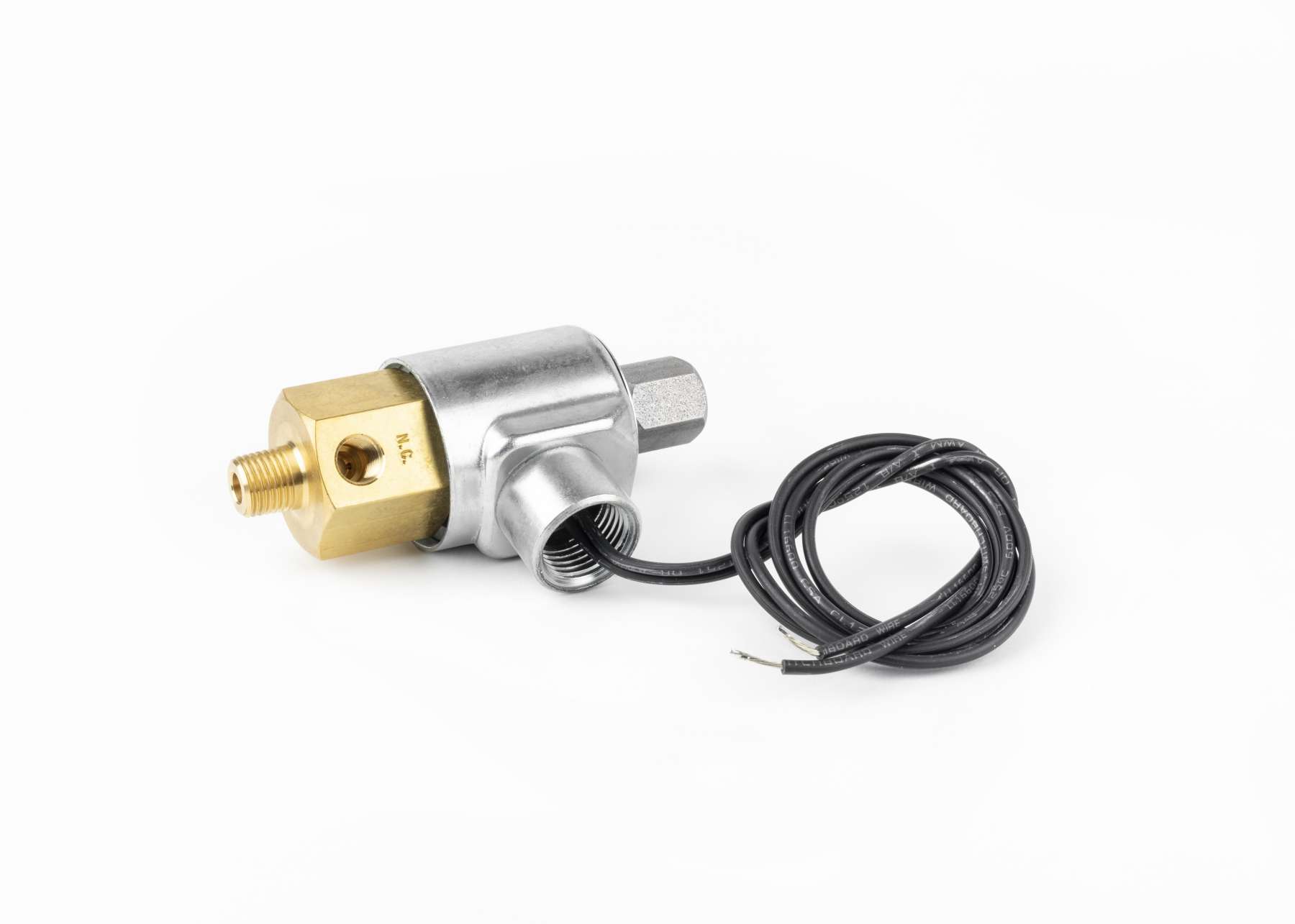

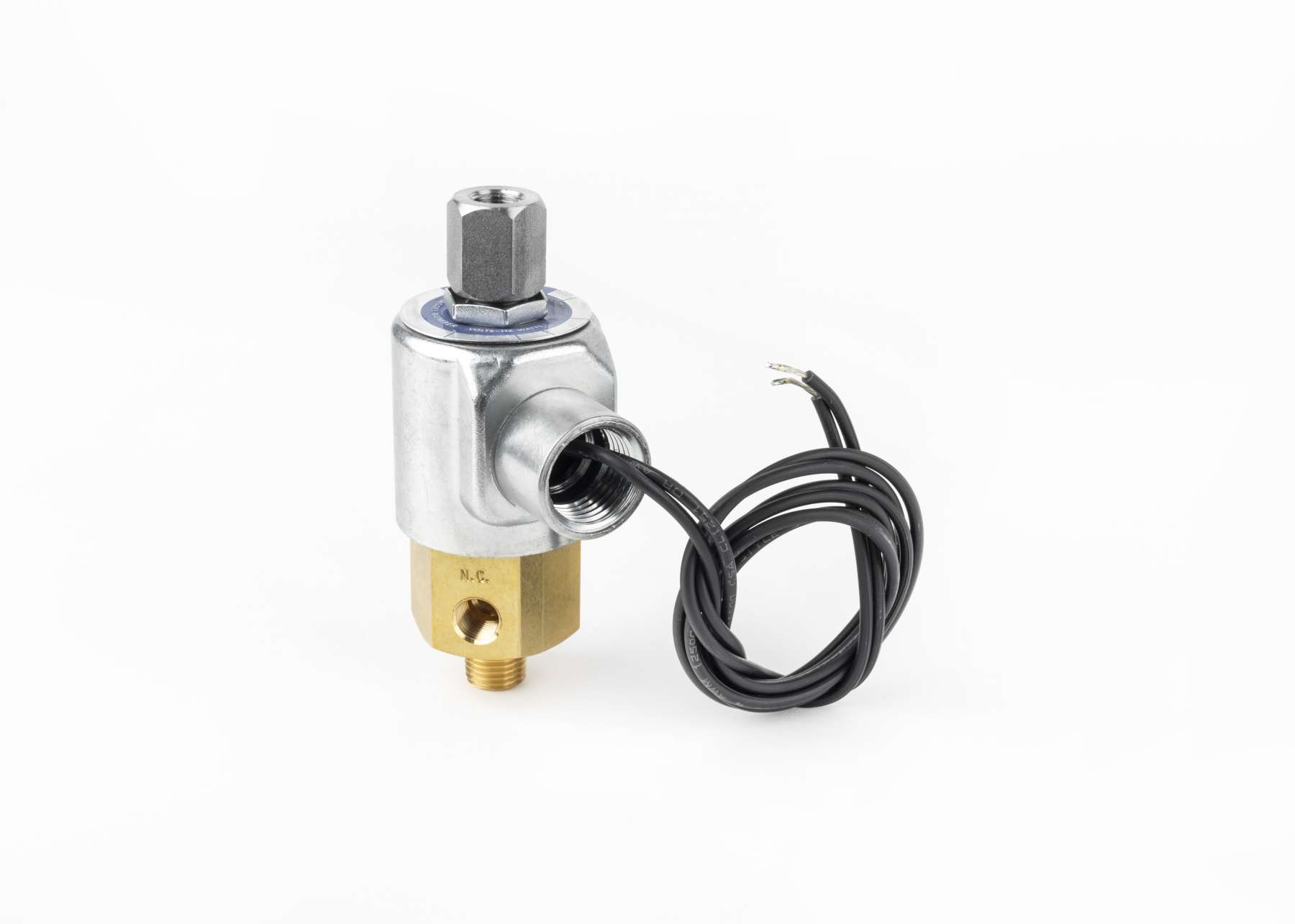

Our multi-function solenoid valves are perfect for operating our pilot-operated 2-way and 3-way Poppet valves, our TUBE-O-MATIC® series, or other pilot-operated products. These units are constructed from non-corrosive materials ensuring long service life. Provides low current draw and bubble-tight sealing permitting millions of trouble-free cycles.
- Standard valves can be plumbed either Normally Open or Normally Closed
- For Air, Inert Gases, Water, and Oil
- Maximum Pressure 150 PSI
Specifications
| Seal Material |
Buna-N |
| Actuator |
Direct Solenoid Operated |
| Valve Design |
Poppet |
| Bubble Tight |
Yes |
| Cv Factor |
.095 |
| Port Size |
1/4" NPT |
| Solenoid Voltage |
240V / 60Hz |
|
Model Number
|
03-3032 |
| Type |
Multi-Function - 3 Way Normally Open or 3 Way Normally Closed
|
| Body |
Brass |
| Internal Parts |
Stainless Steel |
| Weight (lbs) |
1.1 |
| Supply Port Size |
1/8" NPT |
|
Temperature Range
|
0° F to +180° F
|
|
Solenoid
|
- Continuous Duty, AC
- 8.7 Watts
|
| Pressure Range |
0-150 PSI
|
