Product Profile

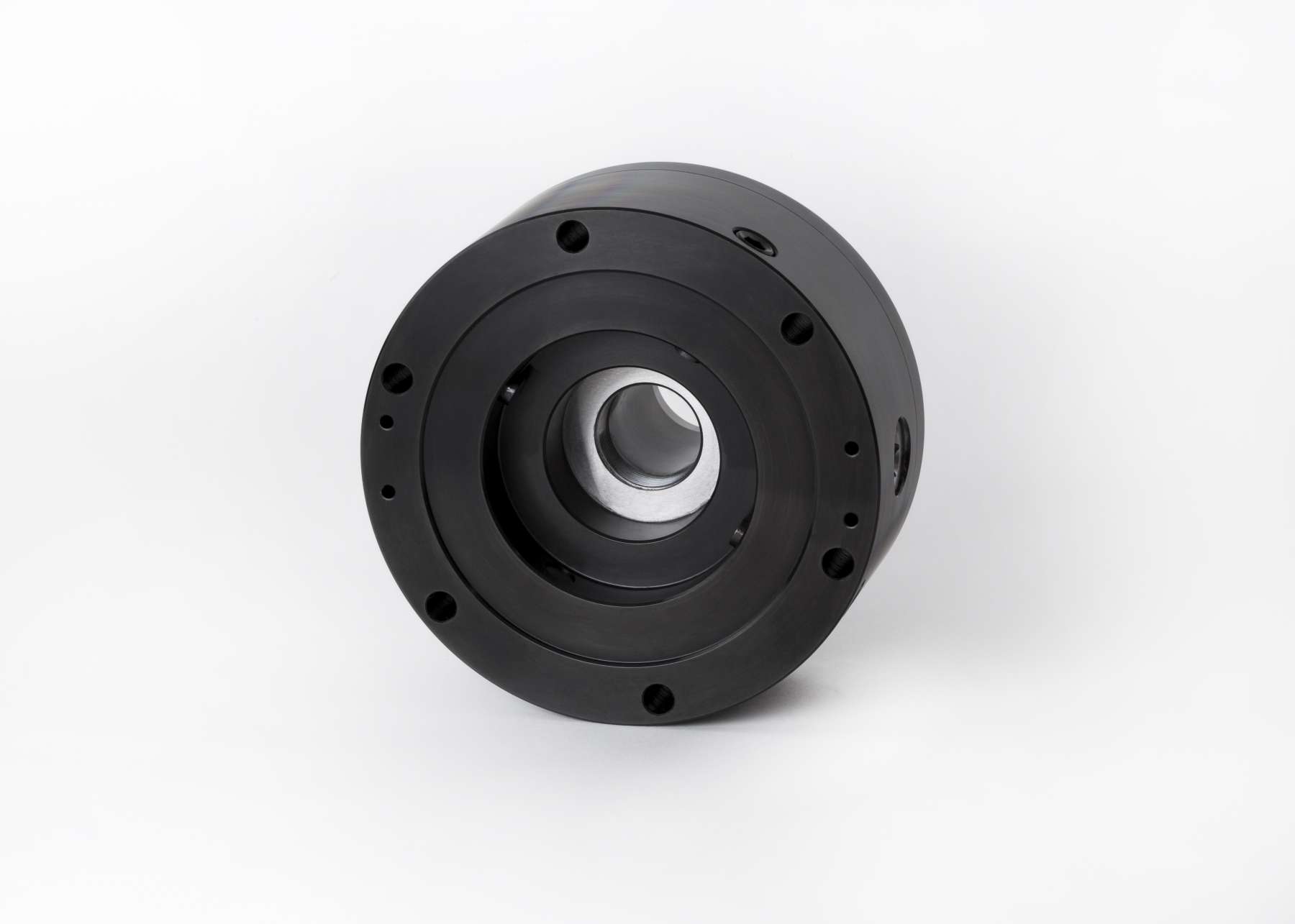

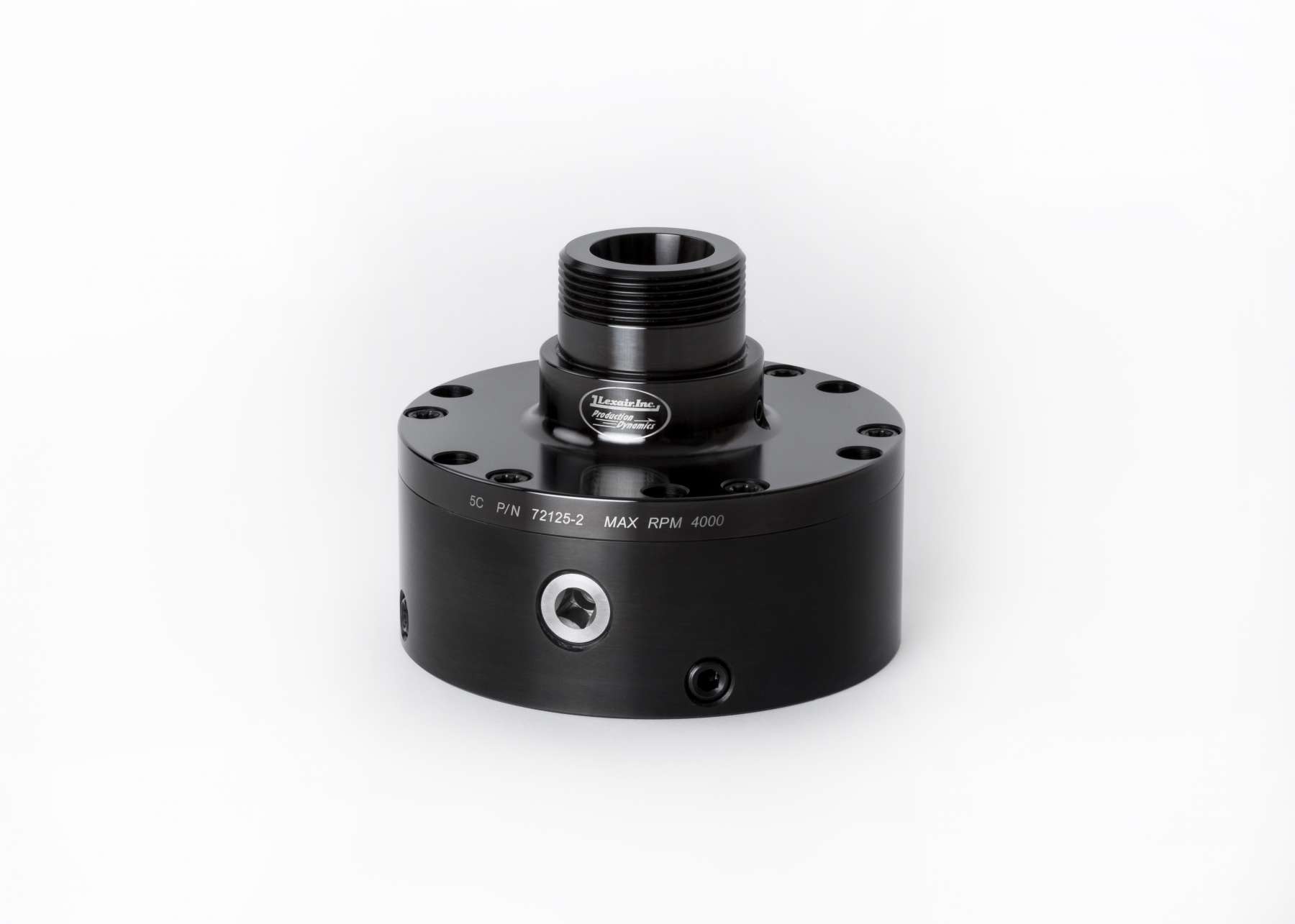

Our 5c step chuck wrench-operated chuck features a flat base to be used on lathes, mills, grinders, etc., fitting all your machining needs. Requires an adapter plate for rotating spindle equipment. The manual operation eliminates the drawtube and cylinder. These units are ideal for use on hybrid CNC/manual lathes.
- Carry a wide range of adaptor plates to cover all major brands and types

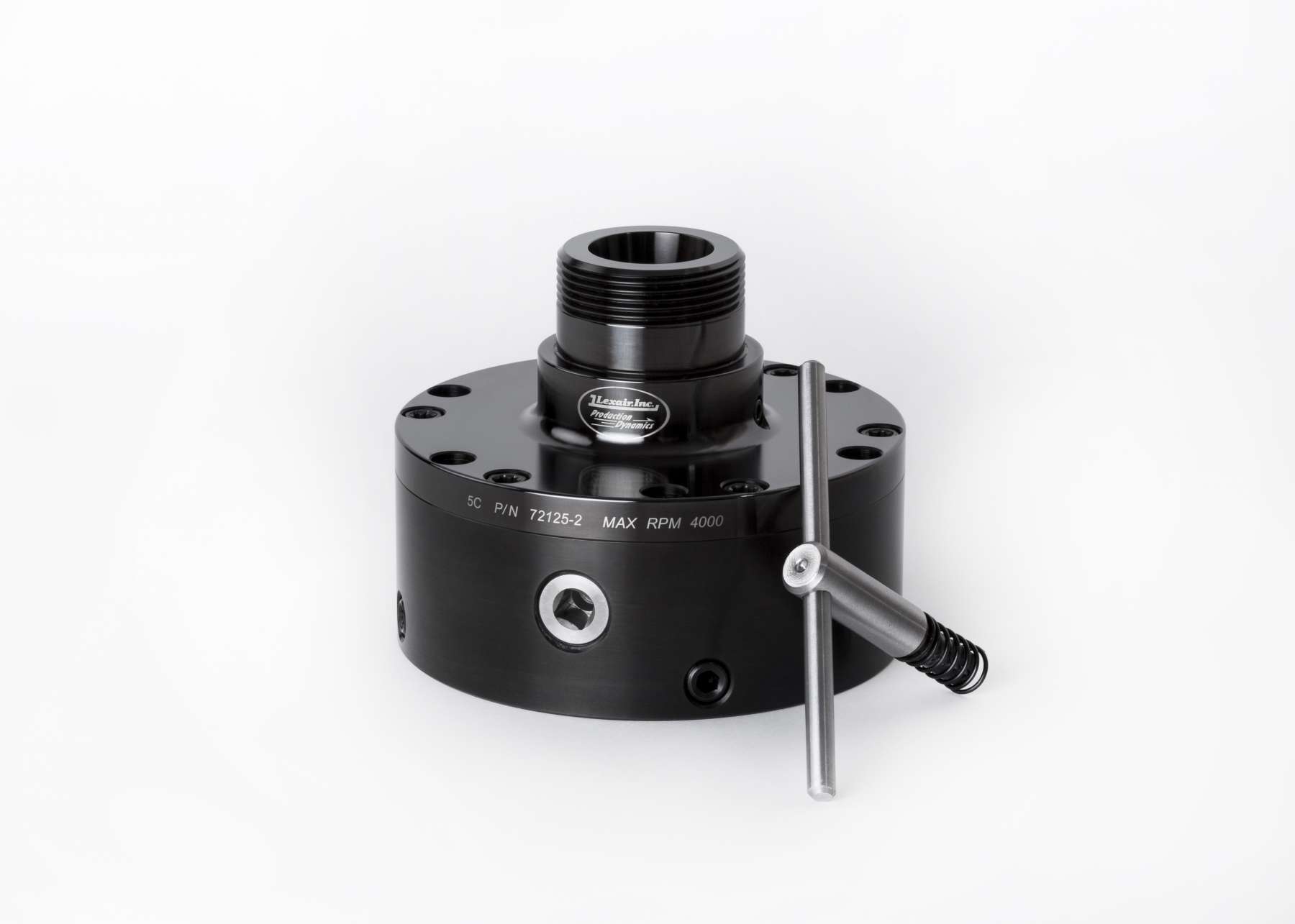

- Includes both chuck wrench and collet wrench
Specifications
| Chuck Diameter |
6" |
| Type |
Collet Chuck |
| Chuck Acuation |
Manually Operated |
| Max Thru Diameter |
1.062" |
| Step Chuck Compatible |
Yes |
| Maximum RPM |
4000 |
| Collet Style |
5C |
| Max Step Chuck Diameter |
6" |
| Optional Adaptor Plates |
- A2-4
- A2-5
- A2-6
- A2-8
- D1-3
- D1-4
- D1-5
- D1-6
- D1-8
- TH-950
- TH-951
- TH-955
- HS-357
- HS-276
|
